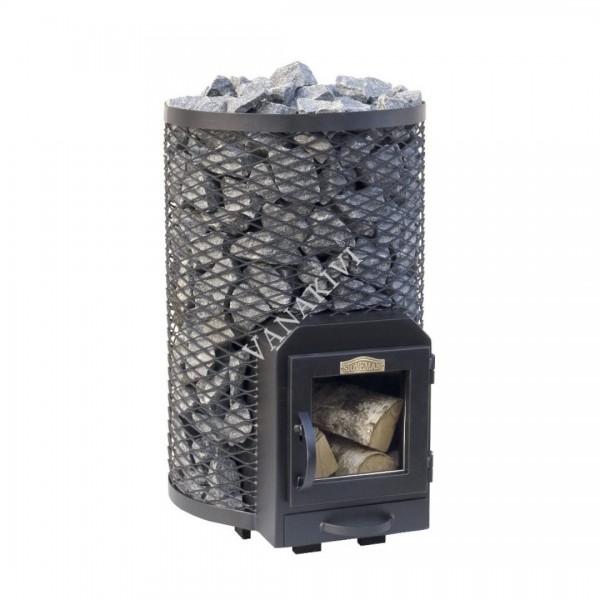

Sauna stove Stoveman Heavy 20R

Sauna stove STOVEMAN Heavy 20R is recommended for a dry or humid sauna experience in a home situation.
Stoveman sauna stove guarantees an enjoyable, mild and durable sauna experience thanks to the large amount of heater stones that block the radiation from the metal surfaces.

Sauna stove Stoveman Heavy 20R has an improved ventilation system with air flow channels on the external walls of the heating unit! The ventilation tubes receive the air from the bottom of the heater, it rises upwards as it gets heated and exits between the top stones.

The Stoveman Heavy 20R sauna stove door with glass.

If desired, a heat exchanger SV1 for heating water can be installed on the sauna heater.

Materials:
– All parts of the stove in contact with flames are made of 8 mm sheet steel
– The bottom of the sauna stove is made of 3 mm sheet steel
– Ash box is made of 2 mm sheet steel
– The hand crafted ash grate is made of 10×20 mm square steel

Recommendation:
To connect the Stoveman sauna stove with the chimney it is recommended to use pipes with CE marking withstanding a gas burning temperature of at least 600°C.

General information:

• Suitable for sauna rooms with capacity 12-20 m³
• Amount of stones 160 kg (the stones are not included in the set.)
• Smoke outlet 115 mm
  Wood lenght up to 40 cm
• Equipped with soot flap
• Weight 100 kg
